P.T.M. Inc., Pro Tec Manufacturing

At P.T.M. Inc., we pride ourselves in producing the highest quality garments at competitive prices with the best service available in our industry. We can customize garments to fit your needs — no matter what size or shape. We stock every fabric most commonly used in clean rooms.

Coveralls

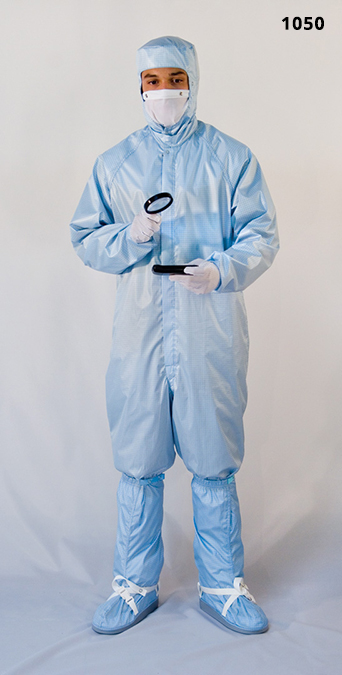

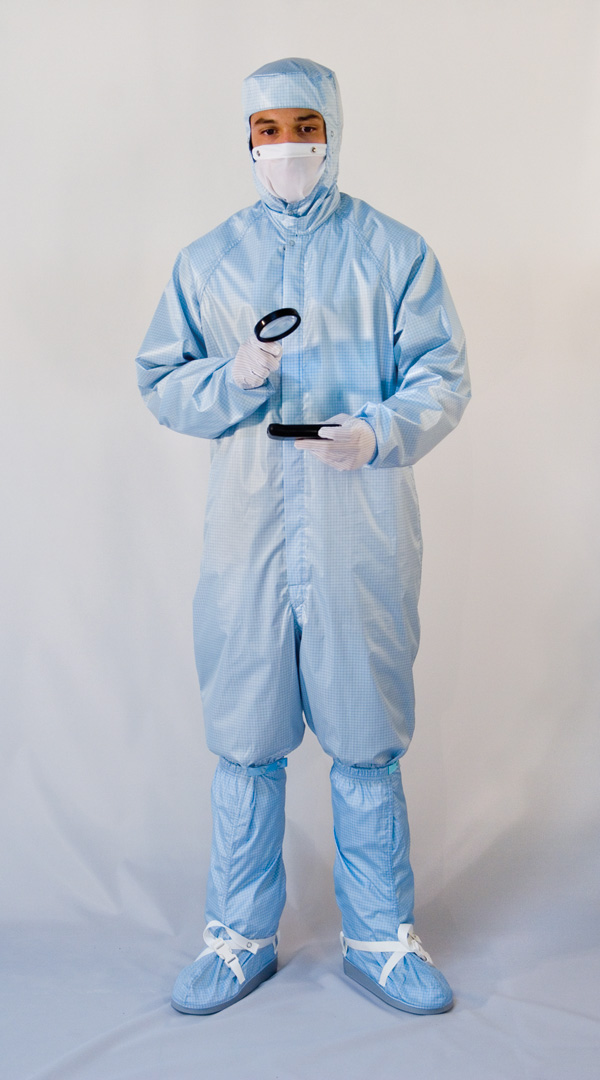

1050: Raglan sleeves, Mandarin collar, Snap at wrist and snap at ankles, (1) One snap set closure at top of zipper, (3) Three reinforced male snaps on center back of each leg for boot attachment, All seams to be over-locked. (In Photo, Hood: 3030-M, Boot: 4069-4)

1051: Single front zipper with double stitch of placket, Double fly stiffener on both sides of zipper placket, Mandarin collar, neck snap closure (2F) & (2M), Raglan sleeve (with generous length) double cuffs, 3 ½” long knit cuff inner, To secure gloves – install (2M) snaps on each inner knit cuff and (2F) snaps on outer cuff (both 180° degrees apart), Snaps on the center back of each leg at 12”, 14”, and 16” from bottom edge, Over-lock all open edges

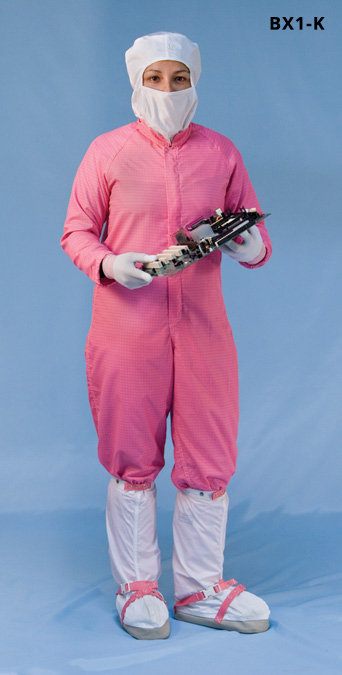

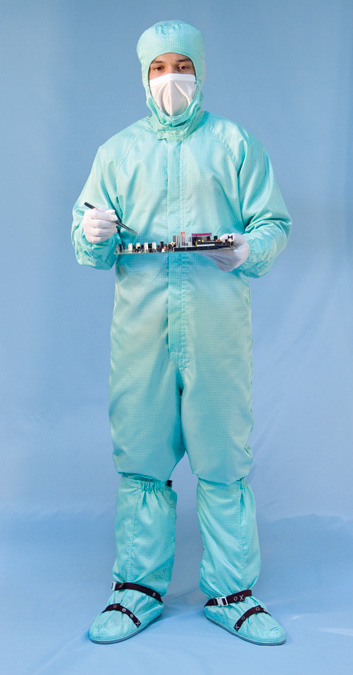

BX1-K: Conductive coverall Military collar with snaps (2M)(2F), Raglan sleeves, Snap (1M) at center top of collar facing inward, Single front zipper w/double stitch of placket, Double fly stiffener on both sides of placket, Snaps (3M) at back waist & (1F) at waist tab for adjustment, Snaps (5M) at bottom of each leg side seam to connect with conductive tape inside seam, Snaps (1M) at each side of hip seam to connect with conductive tape inside seam, Double cuff, grey conductive ESD knit cuff inner, elastic outer, Conductive tape inside back seam connected with center top collar snap for single ground connection, At side seam on both sides the garment inside the bias seam is the conductive tape ESD is connected on the knit cuff & outer cover continued to back seam raglan & back neck & continued side seam for end at bottom edge of the leg, Over-lock all edges with conductive thread. (In Photo, Hood: HX1-K, Boot: BTX1-K)

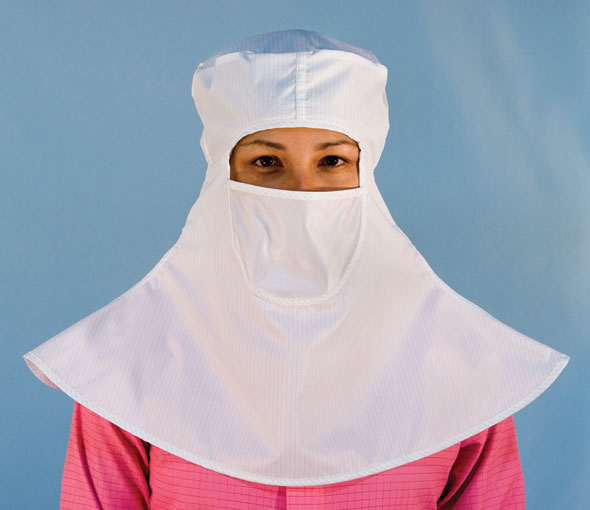

Hoods

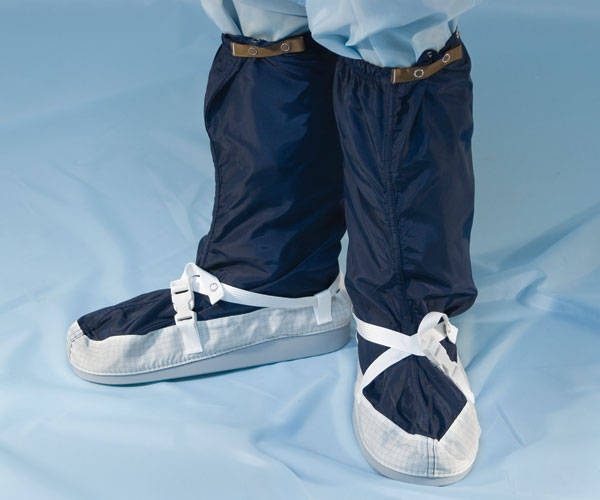

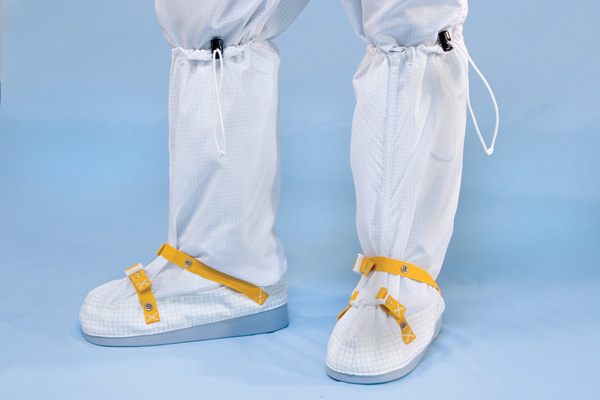

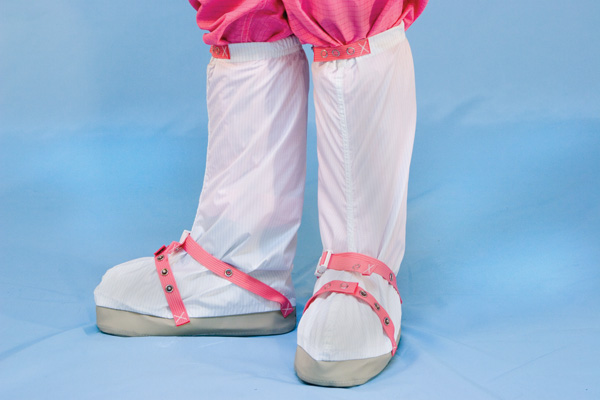

Boots & Shoes

Shirts & Pants

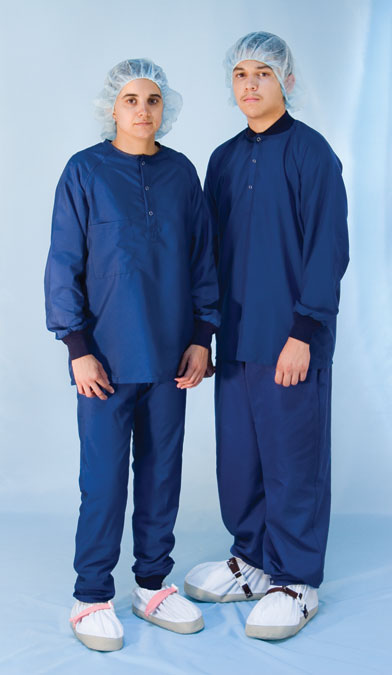

Pull Over Shirt: 811-3G (left): Pull over shirt, Raglan sleeves, Knit cuff wrist navy non ESD, Front placket with (3) set snaps, Bias at neck, One pocket on right side breast. At back center neck is color coded hanger loop & label

Pants: 400-KC (left): Back elastic waist, ties at front waist for adjustment, knit cuff at leg opening non polyester match to the color

Pull Over Shirt: 811-J (right): Raglan sleeves, knit collar navy polyester fabric width tape bias at neck with top stitch, knit cuff on wrist polyester navy fabric, front placket with (3) set snaps, back top center is placed label with heat sealed parch

Pants: 400 (right): Elastic back, ties at front, snaps at leg opening

Frocks

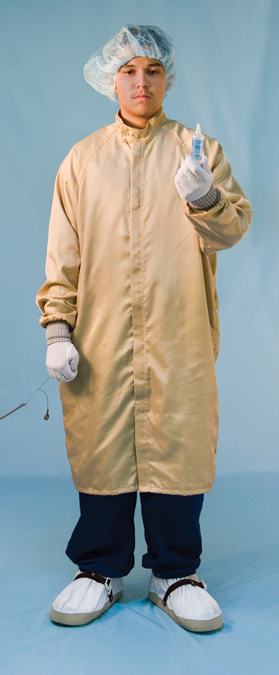

Frock: FX1-K: Single path, knee length, Military collar w/ snaps (2M), (2F), Raglan sleeves, Snaps (1M) at center top of collar facing inward, Double fly stiffener on both sides of placket, Knit cuff–grey conductive ESD, Conductive tape inside back seam connected with center top collar snap for single ground connection, At side seam on both sides of garment, inside the bias seam is the conductive tape ESD that connects to the knit cuff that continues to back seam raglan, back neck & continues side seam for end at hip area on female snap, Over-lock all edges with conductive thread

Lab Coats

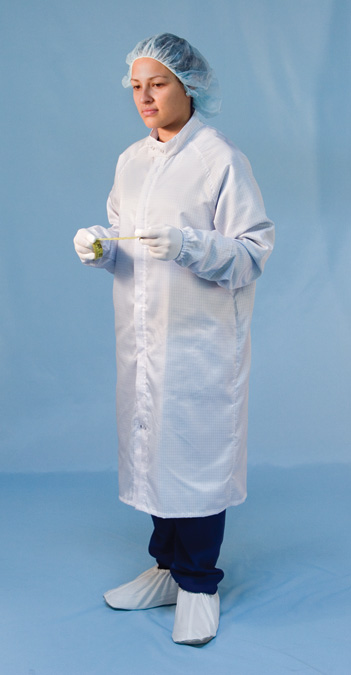

Lab Coat ESD TW Clean Garments: LX1-K
Single path, knee length, Military collar with snaps (2M) (2F), Raglan sleeves, Snaps (1M) at center top of collar facing inward, Double fly stiffener on both sides of placket, Snaps (1M) at each side of hip seam to connect with conductive tape inside seam, Double cuff, gray conductive ESD knit cuff inner,  elastic outer, Conductive tape inside back seam connected with center top collar for single ground connection, At side seam on both sides the garment inside the bias seam in the conductive tape ESD is connected on the knit cuff & outer cover continued to back seam raglan, back neck & continued to back center seam, Over-lock all edges with conductive thread

Accesories

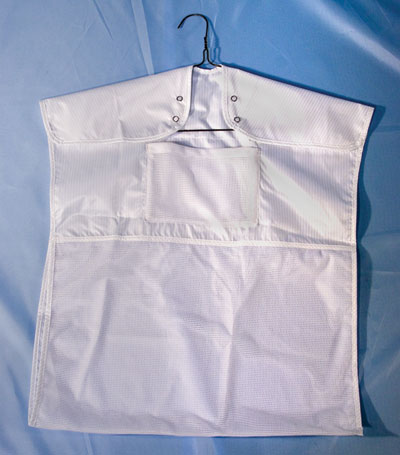

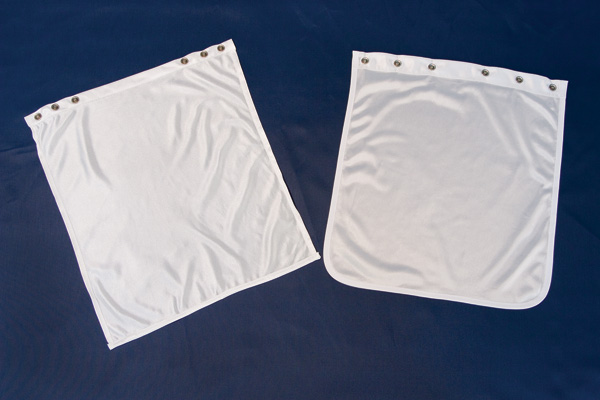

Accessories: Garment Bags & Masks

Contact Us

Humberto Carlos, President

4141 W. Clarendon Avenue
Phoenix, AZ 85019
(602) 651-1445
